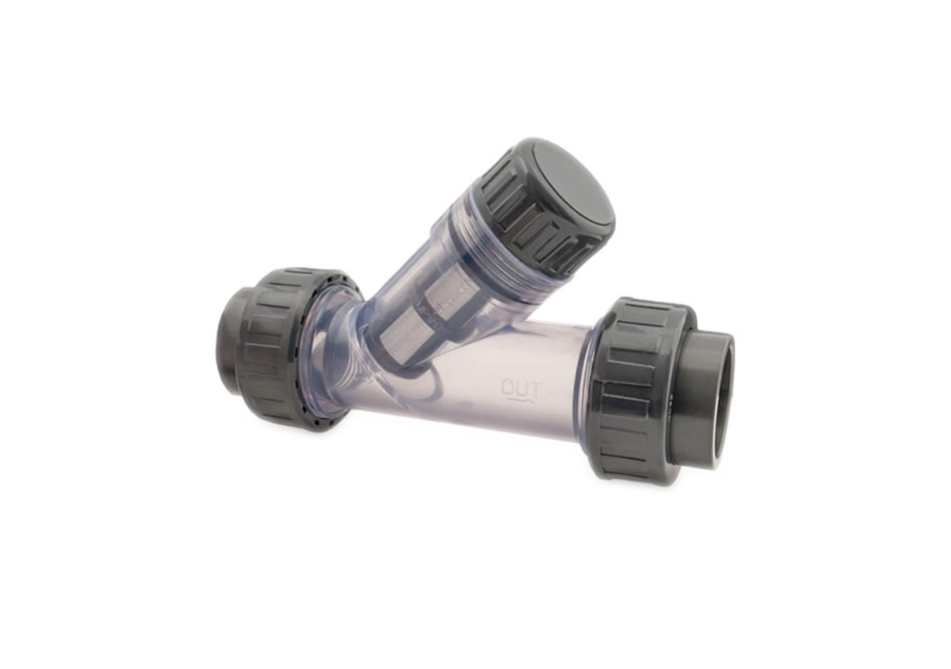

P200 Y-Type U-PVC / PP-H Thermoplastic Strainers
Y-Type U-PVC / PP-H strainers are high-performance mechanical filtration components designed to retain solid particles contained in fluids flowing through pipeline systems. Thanks to their “Y” body design, they provide efficient filtration with low pressure loss and allow for easy maintenance. They are safely used in chemical processes, water treatment systems, and industrial facilities.
PVC and PP-H material options provide high chemical resistance and extended service life. PP-H bodies are particularly suitable for aggressive chemicals and high-temperature applications.
Material Construction
• Body: PVC or PP-H (Polypropylene Homopolymer)
• Filter Element (Screen): PP or PVC
• Seal: EPDM or FPM (Viton) – selectable according to the fluid
PVC and PP-H material options offer high chemical resistance and long service life. PP-H bodies are particularly suitable for
aggressive chemicals and high-temperature applications.
Technical Specifications
• Connection Type: Solvent cement socket, threaded or flanged
• Nominal Diameter: DN 15 – DN 100
• Filtration Rating: 2 mm
• Working Pressure: PN 10
• Operating Temperature: PVC: 0 °C to +60 °C
PP-H: 0 °C to +90 °C
Advantages
• High chemical and corrosion resistance
• Low pressure loss
• Easy maintenance and cleaning
• Long-lasting and robust construction
• Wide range of applications and connection options
Applications
• Water treatment and filtration systems
• Chemical and petrochemical plants
• Process pipelines
• Agricultural and irrigation systems
• Food, pharmaceutical, and industrial fluid
applications
Technicial Specifications
Documents
| Document Name |
Document Language |
Document Size |
Document Link |
| P200 Y-Type U-PVC / PP-H Thermoplastic Strainers Catalogue | ENG | 177.91 Kb |  |
