V205 Series Wafer Flanged Ball Valves

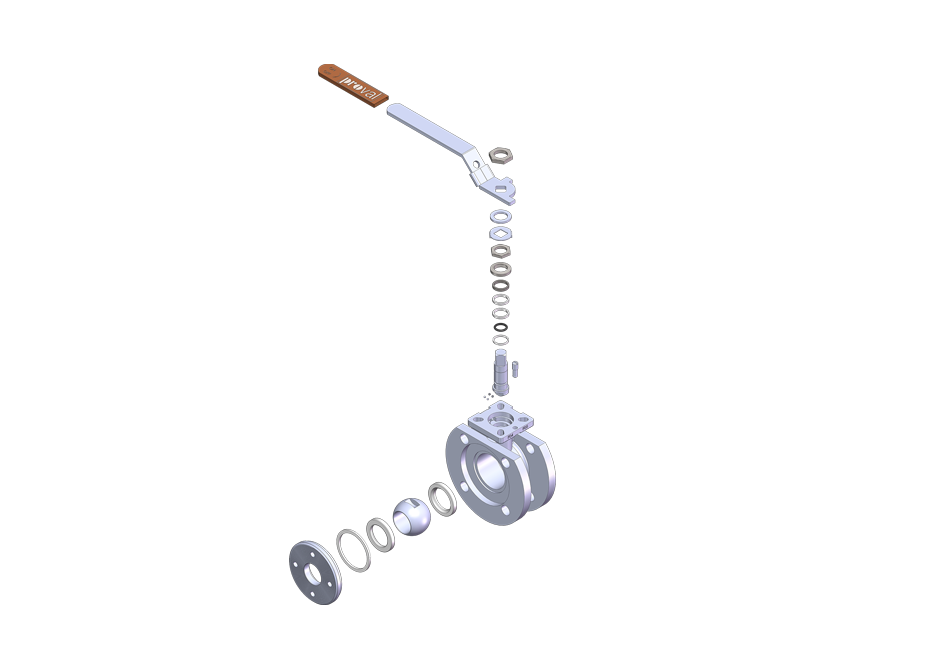

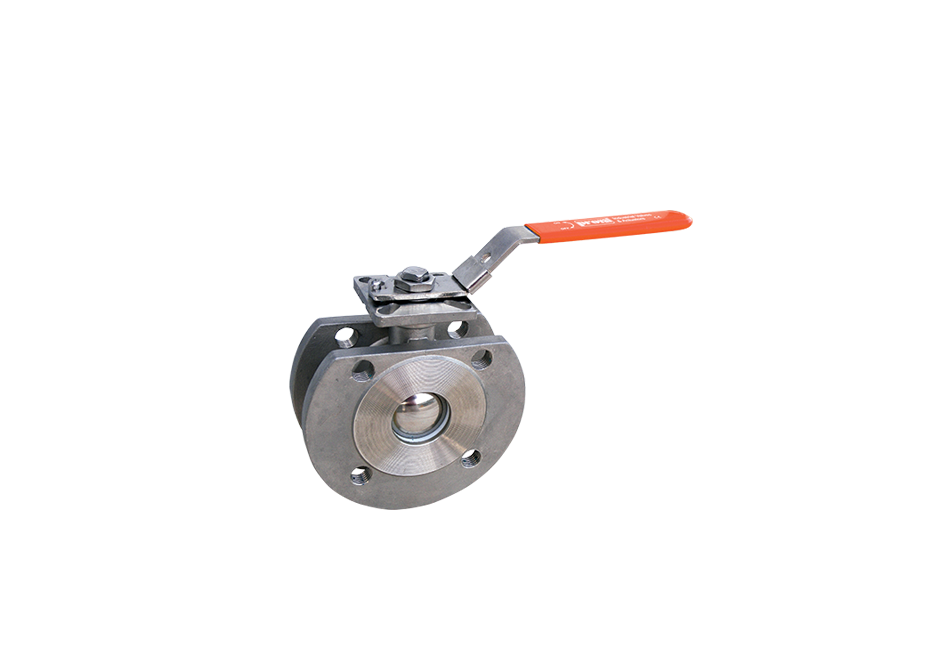

Proval V205 Series ball valves are available in sizes ranging from DN15 to DN200 with a compact, light-weight, one-piece body construction eliminating the leak path inherent in a body joint. Built-in ISO5211 mounting pad facilitates direct mounting of pneumatic, electric, and hydraulic actuators. V205 series has a pressure rating standard PN40 for sizes from DN15 to 50 and PN16 with optional PN40 from DN65 to DN200. Optional V205-V series are available with 30 or 60-degree V cut balls for precise flow regulation applications as well as V205-HJ series heat jacked connection for fluids that freeze or crystallise when cooled.
Technicial Specifications
Documents
| Document Name |
Document Language |
Document Size |
Document Link |
| V205 Series Wafer ( Monoblock )Flanged Ball Valves Catalogue | ENG | 2,469 Mb |  |
